개발 환경 설정



탭 제목을 클릭할때마다 해당 탭이 상위로 올라오면서, 마치 메뉴처럼 구성된 UI 디자인입니다.

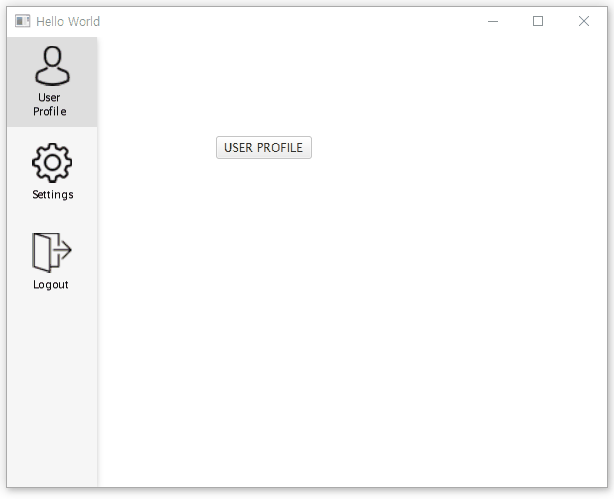

결과



프로젝트 다운로드

JavaFXVerticalMenuJFXTabpane.zip
2.48MB

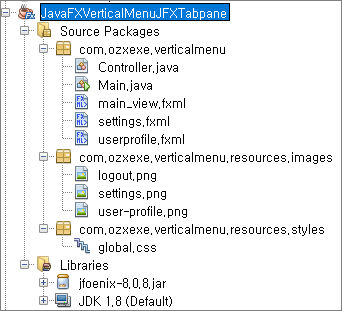

프로젝트 구조

프로젝트 패키지 구조
프로젝트 파일 구조



소스 코드

Main.java

package com.ozxexe.verticalmenu;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class Main extends Application {

    @Override
    public void start(Stage primaryStage) throws Exception{
        Parent root = FXMLLoader.load(getClass().getResource("main_view.fxml"));
        primaryStage.setTitle("Hello World");
        primaryStage.setScene(new Scene(root, 600, 450));
        primaryStage.show();
    }


    public static void main(String[] args) {
        launch(args);
    }
}



Controller.java

package com.ozxexe.verticalmenu;

import com.jfoenix.controls.JFXTabPane;
import javafx.application.Platform;
import javafx.event.ActionEvent;
import javafx.event.Event;
import javafx.event.EventHandler;
import javafx.fxml.FXML;
import javafx.fxml.FXMLLoader;
import javafx.geometry.Insets;
import javafx.geometry.Side;
import javafx.scene.Parent;
import javafx.scene.control.Label;
import javafx.scene.control.Tab;
import javafx.scene.image.Image;
import javafx.scene.image.ImageView;
import javafx.scene.layout.AnchorPane;
import javafx.scene.layout.BorderPane;
import javafx.scene.text.TextAlignment;

import java.io.IOException;
import java.net.URL;

public class Controller {

    @FXML
    private JFXTabPane tabContainer;

    @FXML
    private Tab userProfileTab;

    @FXML
    private AnchorPane userProfileContainer;

    @FXML
    private Tab settingsTab;

    @FXML
    private AnchorPane settingsContainer;

    @FXML
    private Tab logoutTab;


    private double tabWidth = 90.0;
    public static int lastSelectedTabIndex = 0;

    /// Life cycle

    @FXML
    public void initialize() {
        configureView();
    }

    /// Private

    private void configureView() {
        tabContainer.setTabMinWidth(tabWidth);
        tabContainer.setTabMaxWidth(tabWidth);
        tabContainer.setTabMinHeight(tabWidth);
        tabContainer.setTabMaxHeight(tabWidth);
        tabContainer.setRotateGraphic(true);

        EventHandler<Event> replaceBackgroundColorHandler = event -> {
            lastSelectedTabIndex = tabContainer.getSelectionModel().getSelectedIndex();

            Tab currentTab = (Tab) event.getTarget();
            if (currentTab.isSelected()) {
                currentTab.setStyle("-fx-background-color: -fx-focus-color;");
            } else {
                currentTab.setStyle("-fx-background-color: -fx-accent;");
            }
        };

        EventHandler<Event> logoutHandler = event -> {
            Tab currentTab = (Tab) event.getTarget();
            if (currentTab.isSelected()) {
                tabContainer.getSelectionModel().select(lastSelectedTabIndex);

                // TODO: logout action
                // good place to show Dialog window with Yes / No question
                System.out.println("Logging out!");
            }
        };

        configureTab(userProfileTab, "User\nProfile", "/com/ozxexe/verticalmenu/resources/images/user-profile.png", userProfileContainer, getClass().getResource("userprofile.fxml"), replaceBackgroundColorHandler);
        configureTab(settingsTab, "Settings", "/com/ozxexe/verticalmenu/resources/images/settings.png", settingsContainer, getClass().getResource("settings.fxml"), replaceBackgroundColorHandler);
        configureTab(logoutTab, "Logout", "/com/ozxexe/verticalmenu/resources/images/logout.png", null, null, logoutHandler);

        userProfileTab.setStyle("-fx-background-color: -fx-focus-color;");
    }

    private void configureTab(Tab tab, String title, String iconPath, AnchorPane containerPane, URL resourceURL, EventHandler<Event> onSelectionChangedEvent) {
        double imageWidth = 40.0;

        ImageView imageView = new ImageView(new Image(iconPath));
        imageView.setFitHeight(imageWidth);
        imageView.setFitWidth(imageWidth);

        Label label = new Label(title);
        label.setMaxWidth(tabWidth - 20);
        label.setPadding(new Insets(5, 0, 0, 0));
        label.setStyle("-fx-text-fill: black; -fx-font-size: 8pt; -fx-font-weight: normal;");
        label.setTextAlignment(TextAlignment.CENTER);

        BorderPane tabPane = new BorderPane();
        tabPane.setRotate(90.0);
        tabPane.setMaxWidth(tabWidth);
        tabPane.setCenter(imageView);
        tabPane.setBottom(label);

        tab.setText("");
        tab.setGraphic(tabPane);

        tab.setOnSelectionChanged(onSelectionChangedEvent);

        if (containerPane != null && resourceURL != null) {
            try {
                Parent contentView = FXMLLoader.load(resourceURL);
                containerPane.getChildren().add(contentView);
                AnchorPane.setTopAnchor(contentView, 0.0);
                AnchorPane.setBottomAnchor(contentView, 0.0);
                AnchorPane.setRightAnchor(contentView, 0.0);
                AnchorPane.setLeftAnchor(contentView, 0.0);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

}



main_view.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import com.jfoenix.controls.JFXTabPane?>
<?import javafx.scene.control.Tab?>
<?import javafx.scene.layout.AnchorPane?>
<?import javafx.scene.layout.StackPane?>

<StackPane prefHeight="431.0" prefWidth="661.0" stylesheets="@resources/styles/global.css" xmlns="http://javafx.com/javafx/11.0.1" xmlns:fx="http://javafx.com/fxml/1" fx:controller="com.ozxexe.verticalmenu.Controller">
   <children>
      <JFXTabPane fx:id="tabContainer" prefHeight="128.0" prefWidth="308.0" side="LEFT" tabClosingPolicy="UNAVAILABLE">
         <tabs>
            <Tab fx:id="userProfileTab" closable="false" text="User Profile">
               <content>
                  <AnchorPane fx:id="userProfileContainer" minHeight="0.0" minWidth="0.0" prefHeight="180.0" prefWidth="200.0" />
               </content>
            </Tab>
            <Tab fx:id="settingsTab" closable="false" text="Settings">
               <content>
                  <AnchorPane fx:id="settingsContainer" minHeight="0.0" minWidth="0.0" prefHeight="180.0" prefWidth="200.0" />
               </content>
            </Tab>
            <Tab fx:id="logoutTab" closable="false" text="Logout">
               <content>
                  <AnchorPane minHeight="0.0" minWidth="0.0" prefHeight="180.0" prefWidth="200.0" />
               </content>
            </Tab>
         </tabs>
      </JFXTabPane>
   </children>
</StackPane>



settings.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.control.Label?>
<?import javafx.scene.layout.AnchorPane?>


<AnchorPane prefHeight="400.0" prefWidth="600.0" xmlns="http://javafx.com/javafx/9.0.4" xmlns:fx="http://javafx.com/fxml/1">
   <children>
      <Label layoutX="283.0" layoutY="192.0" text="SETTGINS" />
   </children>
</AnchorPane>



userprofile.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.control.Button?>
<?import javafx.scene.layout.AnchorPane?>


<AnchorPane prefHeight="400.0" prefWidth="600.0" xmlns="http://javafx.com/javafx/9.0.4" xmlns:fx="http://javafx.com/fxml/1">
   <children>
      <Button layoutX="119.0" layoutY="99.0" mnemonicParsing="false" text="USER PROFILE" />
   </children>
</AnchorPane>



global.css

.root {
    -fx-base: white;
    -fx-color: -fx-base;

    -fx-font-family: "Montserrat";
    -fx-accent: rgb(246, 246, 246);
    -fx-default-button: -fx-accent;
    -jfx-primary-color: -fx-accent;
    -jfx-light-primary-color: -fx-accent;
    -jfx-dark-primary-color: -fx-accent;
    -fx-focus-color: rgb(222, 222, 222);
    -jfx-secondary-color: -fx-focus-color;
    -jfx-light-secondary-color: -fx-focus-color;
    -jfx-dark-secondary-color: -fx-focus-color;
}

/*******************************************************************************
 *                                                                             *
 * JFX Tab Pane                                                                *
 *                                                                             *
 ******************************************************************************/

.jfx-tab-pane .headers-region {
    -fx-background-color: -fx-accent;
}

.jfx-tab-pane .tab-header-background {
    -fx-background-color: -fx-accent;
}

.jfx-tab-pane .tab-selected-line {
    -fx-stroke: -fx-accent;
}

.jfx-tab-pane .tab-header-area .jfx-rippler {
    -jfx-rippler-fill: -fx-focus-color;
}

.tab-selected-line {
    -fx-background-color: -fx-focus-color;
}



팁

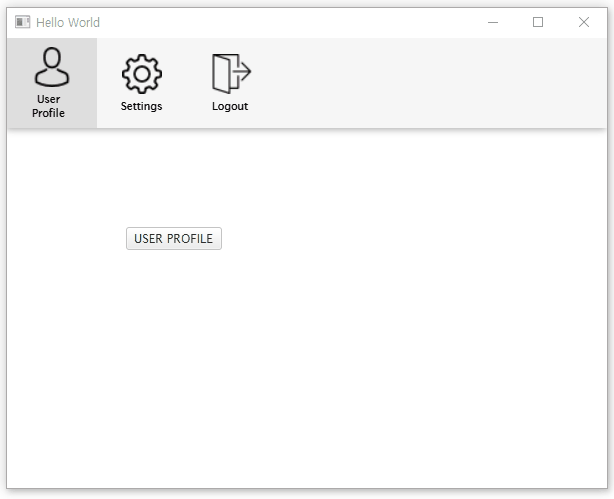

Controller.java의 tabPane.setRotate(90.0); 코드를 제거하고, main_view.fxml의 JFXTabPane 속성 side="LEFT" 제거 또는 TOP을 변경한 결과는 다음과 같습니다.



참고사이트



Vertical, stateful JFXTabPane with icons in JavaFX

In this post, I will show you how to build a custom vertical tab bar with icons using JFXTabPane. Our main goal over here is to create a side menu with 1 tab being single state logout button. Let's take a look at the final result:

synappse.co





Synappse/tutorials

A place for all code used in our blog and youtube videos. - Synappse/tutorials

github.com
